Production Capabilities

Our production capabilities include but not limited to--

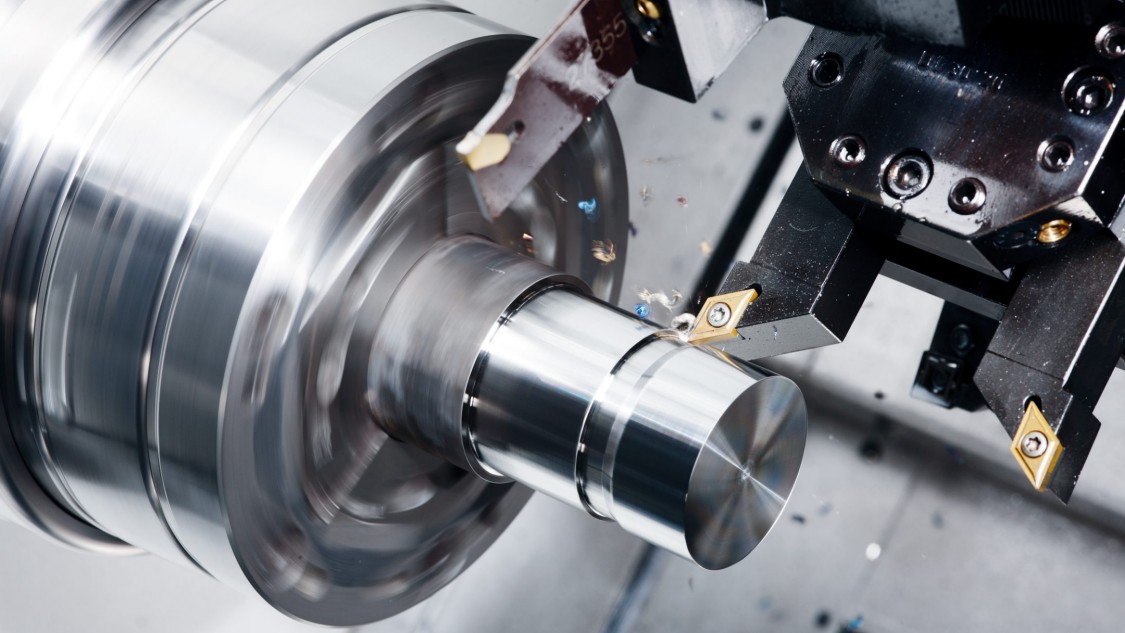

CNC Turning

A decent setup of cnc turning machines of Ace Micromatic and LMW which covers the following ranges

  • Dia Range. Up to 325mm max
  • Turning length range: 500mm max

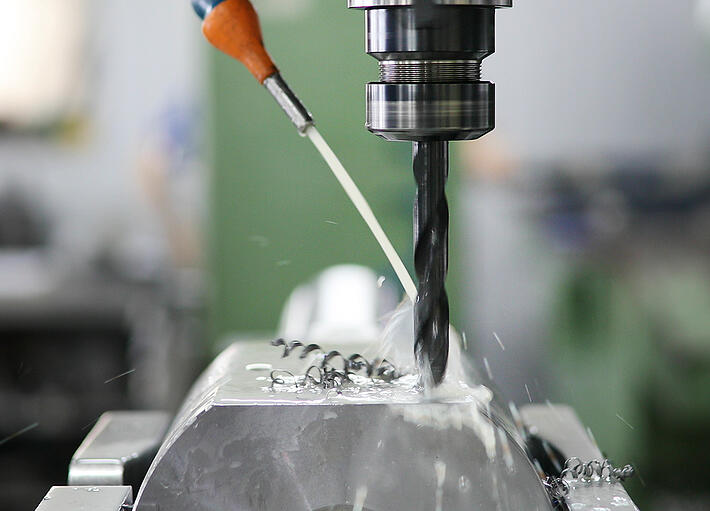

Drilling

  • Vertical drilling machines

Drilling with required jigs and fixtures to meet the given specifications.

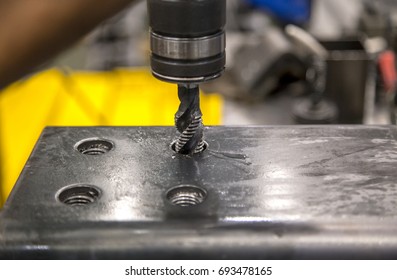

Tapping

  • Horizontal Tapping Machine

Tapping machine Inside tapping from 6mm to 30x1.5mm max as per 6h GO/NO GO gauges.

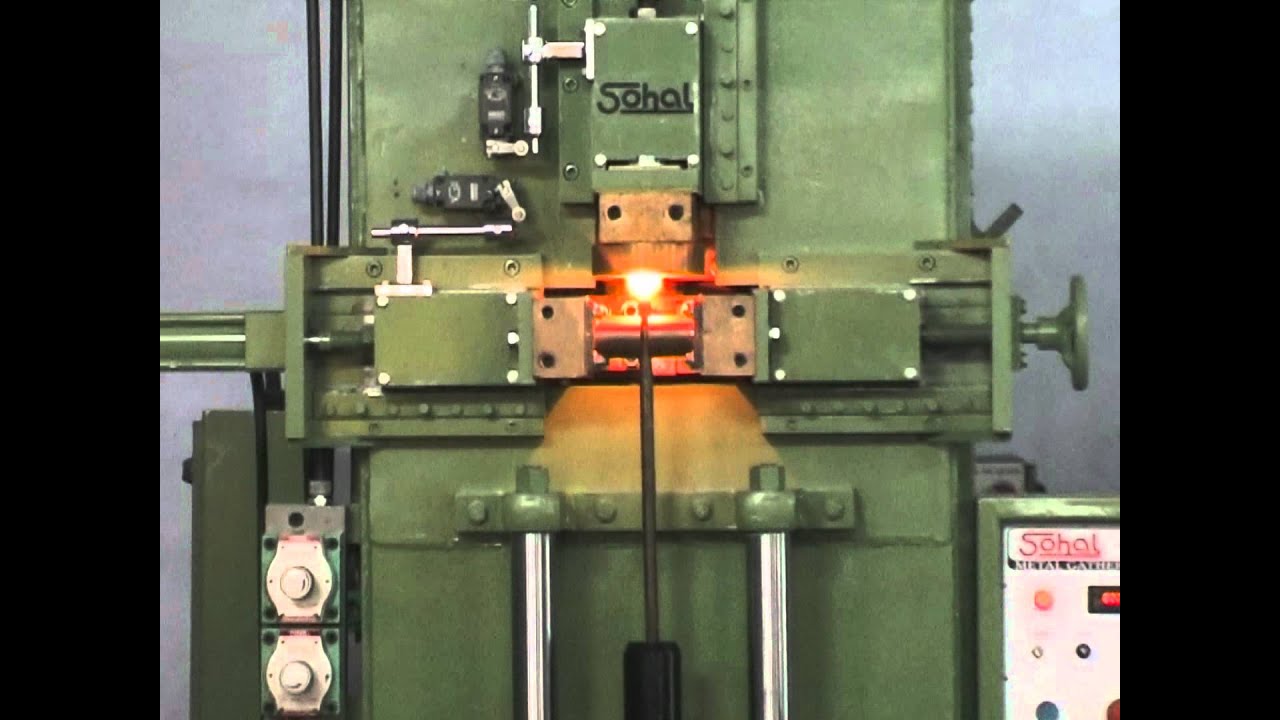

Metal Gathering Forging

Gathering can be done from 6mm dia to 40mm dia max.

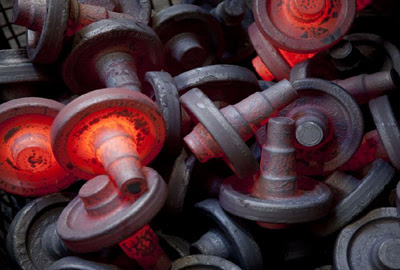

Hot Forging

  • Forging Weight Range: 60g to 5kg max.
  • Dia Range: 30mm to 150mm max.
  • Length/Height Range: 16mm to 125mm max.

Hot Ring Rolling

Setup which covers the range from 300g to 30kg max forging weight .

  • OD Range : From 60mm to 450mm max.
  • Length / Height Range : 17mm to 150mm max

Broaching

A setup of which covers the following range-

  • Dia Range : Up to 125mm max

Cold Forging

  • Forging Weight Range : 50g to 600g max .
  • Dia Range : 30mm to 150mm max .
  • Length / Height Range : 15mm to 100mm max

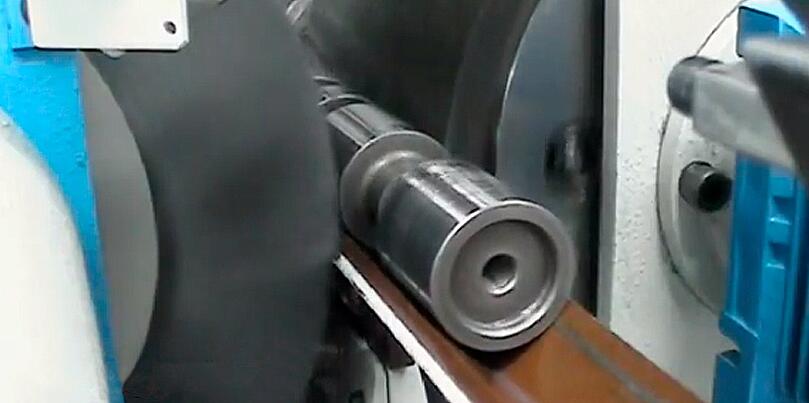

Grinding

Following facilities are available

  • Centerless Grinders
  • Cylindrical Grinders
  • Internal Bore Grinders

HAMMER FORGING

Setup which covers the following range-

  • Forging Weight Range : 500g to 30kg max .
  • Hammer capacity : 0.5 Ton to 3 Ton

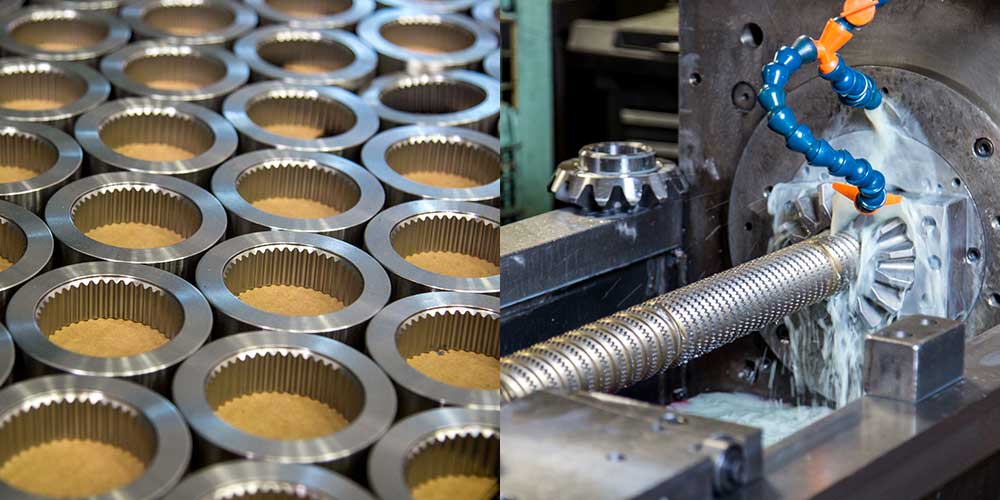

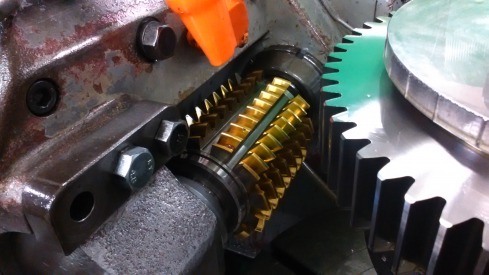

GEAR TEETH CUTTING FACILITIES

  • Gear Hobbing Machine
  • Gear Shaving Machines
  • Gear Teeth Deburring Machines

WARM FORGING (SCREW/MECHANICAL PRESS)

  • Forging Weight Range: 50g to 1250g max.
  • Dia Range: 25mm to 75mm max.
  • Length Range: 16mm to 50mm max.

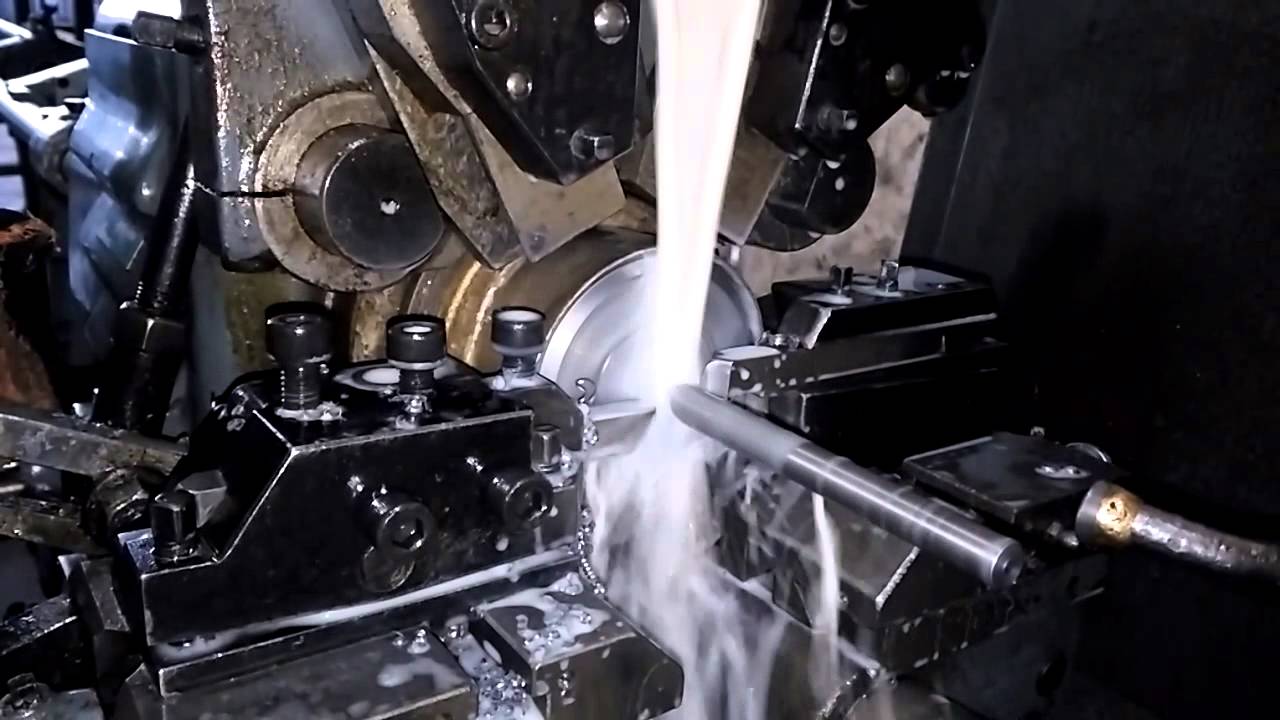

AUTOMATES

  • Setup of PMT Automates
  • Dia Range: 25mm max.
